Chemical Product Spray Drying Equipment 100kg/H 2.56M Diameter

Changzhou Fanqun Drying Equipment Co.,Ltd
Contact Now

Chemical Product Spray Drying Equipment 100kg/H 2.56M Diameter

  • 1
  • 2

Supply Ability : 25kg/Hr to 600kg/Hr

Payment Terms : L/C, T/T

Model NO. : LPG

Structure : Air Flow Drier

Type of Flow : Parallel Flow

Operational Method : Intermittent

Drying Medium : Air

Operation Pressure : Atmospheric Dryer

Sprayer : Centrifugal

Movement Way : Spraying

Appearance of Dried Sample : Liquid Product

Type of Atomization : Centrifugal Atomizer

Trademark : Changzhou Fanqun

Transport Package : Sea Packing

Specification : CE

Origin : Changzhou, China

HS Code : 84193990

Port : Shanghai, China

Heating Mode : Steam, Electricity, Natural Gas, Coal

Material Status : Solution

Atomization : Pressure Atomization

Flow : Contra-Flow

Heat Source : Electricity, Steam, Natural Gas

Type : Airflow Spray

Contact Now

Spray Dryer for Drying Chemical Product

Product Description

Customer Question & Answer

Ask something for more details
Fanqun's Spray Dryer

Fanqun's spray dryer is one of the core technology in China. With customized design and our expertise and various tests, Changzhou Fanqun has provided hundreds of spray dryers to customers.

Advantage of Fanqun's Spray Dryer
-          Short drying time due to large surface area of droplet groups
-          Suitable for small granules (80 to 200 meshes) with good flow.
-          Large flexibility of operation
-          Heat utilization rate is higher than that of other spray dryer when air temperature is over     150ºC

Application
- Chemical products
- Food products
- Pharmaceutical products
- Pilot test dryer

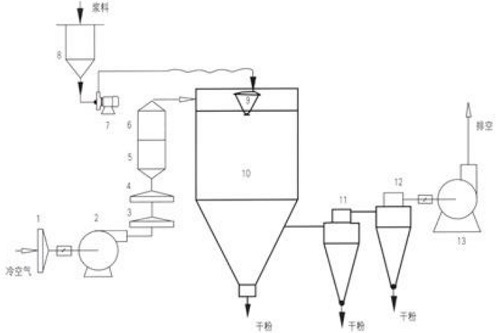

Flow Chart of Spray Dryer
Chemical Product Spray Drying Equipment 100kg/H 2.56M Diameter


Technical Parameter
Model  Water Evaporation
 (kg/h)
 Heat source Driven Power
(kw)
 Diameter
(m)
Height
(m)
LPG-5            3-7  Electricity          4.2        1.2    2.2
LPG-100           75-100  Electricity +    Steam          23        2.56    5.4
LPG- 200           170-200 Electricity +    Steam          43        3.36    7
LPG-500           400-500 Electricity +    Steam          76        5.2    9.2
LPG-1000           800-1000 Electricity +    Steam          109        7.6    12.4
